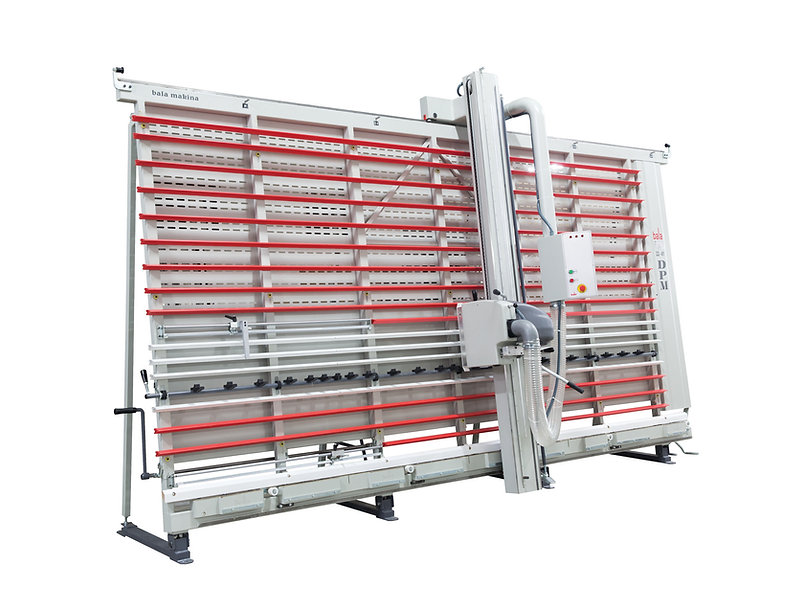

DPM

Technical Properties

Motor Power: 4hp - 5.5hp


Electric Power Consumption: 3kw – 4kw


Rotation: 3000 rpm


Main Blade Rotation: 5800 rpm


Scoring Blade Rotation: 7800 rpm


Horizontal and Vertical Cutting High : 2100 mm


Horizontal and Vertical Cutting Length: 4100 mm

Cutting depth: 60 mm


Cutting Blade Size: 250 x 80 x 30 x 3,2


Scoring Blade Size: 80 x 20 x 2.8-3.6 (10+10) adjustable scoring blade


Panel Size ( W x H x D ): 5000 mm x 2980 mm x 1150 mm


Dimensions Shipping: 5100 mm x 2500 mm x 1400 mm


Bottom Supports: fiber board


Movable Supports: manual
